baggiiiie

writing-a-ssg

todo

v2

  • header level support, now header is just <h>
  • continuous line,
  • footnote
  • multi-level list
    • ordered list: different labeling, from number to letters etc

others

  • front matter
  • links with ^

context switch

issues

how to split blocks

  • split by double new lines (\n\n)?
  • or by single new lines (\n)?

double new lines

this is a list:
- list
not a list

for the above example, its html should be:

<p>this is a list:</p>
<ul>
 <li>list</li>
</ul>
<p>not a list</p>

if we split by \n\n, we wouldn’t get this html

it’s tempting to say “every \n should result in a block”, but that way, the following 2 lines:

this is a line without trailing space
this line should be in the same line as the previous one

will become 2 blocks, when it should actually be one. if they are split into 2 blocks, it’d be very hard to join them back.

single new lines

quartz is able to turn ^no-trailing-line-and-list into <p></p><ul></ul>. so let’s just follow this standard.
if we split by \n\n, even this wouldn’t work:

# hi
## hello

if we wanna split by \n, aka, reading input markdown line by line, how to deal with multi-line blocks like code, quoteblock
we can do something like:

  • read line by line, check line_type along the way.
  • need to maintain a state for current block, (current_block_type?)
  • if current line_type is the same as last line, join them
  • otherwise they’re separate blocks

i kinda think this is stupid?

double + single

  • still do it with \n\n, split the whole input markdown into blocks first

  • then check in each block, if there’s a \n, we check whatever following the \n, see if it’s still the same block

    • if yes, keep the block type
      • but how to do code block?
    • otherwise separate them

other ways?

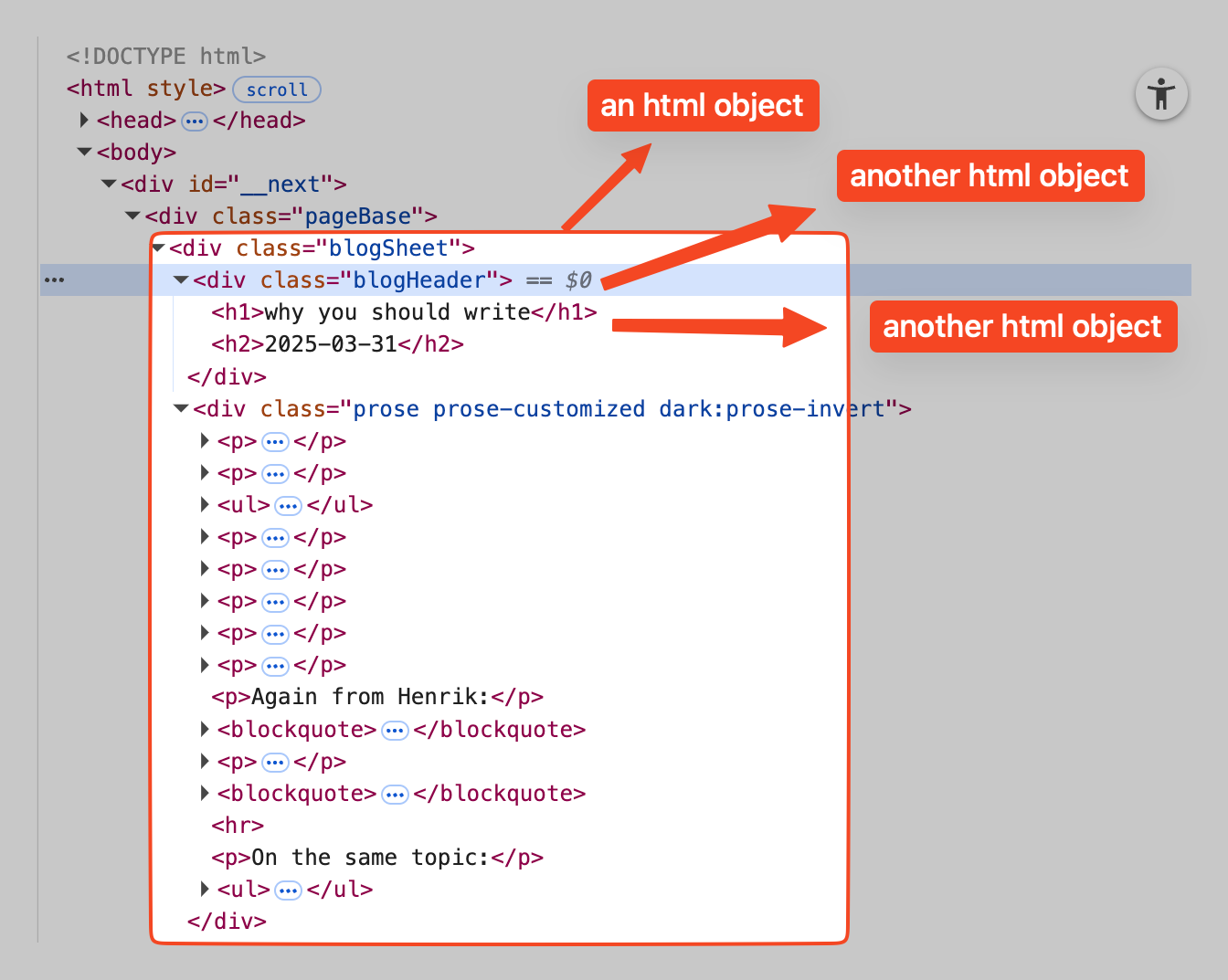

html concepts

Blocks:

  • different “boxes” appeared in the web page
  • this is a block: <h1>This is a markdown file</h1> Inline:
  • different word style within a block
  • this is an line <p>and a paragragh with <i>italics</i> and <b>bold</b></p>

html concepts to OOP concepts

different nodes:

  • TextNode
  • HTMLNode
    • LeftNode
    • ParentNode

conversion process

start: a markdown .md file, which contains multiple lines:

# This is a markdown file

## with title

and a paragragh (trailing spaces)
and some **bold** formatting and even `inline code` and
\`\`\`code blocks
code blocks
\`\`\`

> with quotes
> that spans multiple lines

end: html file:

<h1>This is a markdown file</h1>
<h2>with title</h2>
<p>and a paragragh</p>
...

first step

break down original files, which is just a multi-line string; convert that input string into different blocks: we have ^md-text and we want:

blocks are just a list of strings:

[
 "# This is a markdown file",
 "## with title",
 "and a paragragh and some **bold** formatting and even `inline code` and",
 ...
]

md_to_blocks(string):

  • input: a single string
  • output: a list of string

note

markdown trailing spaces:

  • in a paragraph, if a line ends with more than 2 trailing spaces

    • it indicates a line break. 2 trailing spaces should be removed and a \n should be appended to the end of it
    • if no more than 2 trailing spaces, this line and the next line should be the same line; strip this line, append a space, and let the next line join this line.

  • but in a list, it should always put the next item to new line, regardless of trailing spaces:

- list item 1
- list item 2

second step

decide block_type for each block, it’s decided by the starting element of a block:

  • #/##: hashtags with a space → heading
  • >: left arrow bracket with a space → quote
  • triple backticks: code blocks
  • nothing: paragraph
  • … associate blocks, which is list of strings :
    Transclude of #blocks
    with their types

function: block_to_block_types

third step

convert blocks to TextNodes

TextNode is the smallest element in a string:

TextNode:
 text
 text_type
 url

^text-node for example:

  • This is a markdown file will become TextNode("this is a markdown file", normal_text, None)
    • the block_type for this string is heading, but the text itself is a normal_text
  • this is a text with **bold** and _italics_ and [link](https://url) will be broken down to a list of TextNodes:
[
 TextNode("this is a text with ", normal_text, None),
 TextNode("bold", bold_text, None),
 TextNode(" and ", normal_text, None),
 TextNode("italics", italics_text, None),
 TextNode(" and ", normal_text, None),
 TextNode("link", link_text, "https://url"),
]

fourth step

convert list of TextNodes to HTMLNodes we wanna turn ^list-of-text-nodes into their HTMLNode form, in this case, all of the TextNodes are still leaves:

[
 LeafNode(no_tag "this is a text with ", no_children, no_props),
 LeafNode("b", "this is a text with ", no_children, no_props),
 ...
]

fifth step

construct LeafNodes into hierarchy of HTMLNodes, leading to one single HTMLNode

Note

we are not dealing with nested format, e.g., __bold and *italics*__ right now

we bundle list of LeafNodes into 1 HTMLNode, since from html’s perspective, they are all under the same block, then we get an HTMLNode with a list of children, with each HTMLNode corresponding to a block in the final html page:

HTMLNode(
 block_type,
 text,
 children=[
  LeafNode(no_tag "this is a text with ", no_children, no_props),
  LeafNode("b", "this is a text with ", no_children, no_props),
  ...
 ],
 props,
)

sixth step

so far, we have converted a .md file (a long multiline string) into blocks (list of string), assigned each block with their block_type, and broken down each block to a list of TextNodes, which is then converted to LeafNodes - finally, from text to something related to html!

and after the last step where we bundled LeafNodes into 1 single HTMLNode, we now have 1 HTMLNode for 1 block on the html page.

this step is to bundle individual blocks into one html page, in other words, bundle all HTMLNodes into one.

drawing

ssg-workflow.excalidraw

⚠ Switch to EXCALIDRAW VIEW in the MORE OPTIONS menu of this document. ⚠ You can decompress Drawing data with the command palette: ‘Decompress current Excalidraw file’. For more info check in plugin settings under ‘Saving’

Excalidraw Data

Text Elements

this is a line without trailing spaces line with trailing spaces.

  • item 1 with trailing spaces.
  • item 2 without
def this_is_code () # don't_format
``` ^ZCgG46Vv

> quote line with trailing spaces.
> quote line without
 ^Q4OIOv8f

markdown file ^FOMrB2YY

blocks ^u0mbSX4X

this is a line without trailing spaces ^Dmeq1h5J

line with trailing spaces.   ^J8sT2G6B

block: block_type paragraph ^MKERZPq1

lines ^cim8vVgn

split by \n\n ^1kOuSUyt

split by \n ^wbHnjN04

- item 1 with trailing spaces.   ^GrSDMNus

- item 2 without ^3af2U5th

block: block_type unordered_list ^0QovG2ys

deal with trailing spaces
based on block type ^U2eOoij1

remove "- ", "> ", "```", etc
based on block type ^3LHCVoY8

other operations ^xD7Bb0mX

line formatting ^vnAvghes

formatted lines[list] ^cfDwInQY

break down each line into
text nodes ^fvPq0DCr

code block is just one
text node ^wHW8X91R

TextNodes[list] ^m90r2Eao

LeafHTMLNode ^MEmiPFWl

ParentHTMLNode ^I79Djb3L
Link to original

ToDos

  • nested format __bold and *italics*__
  • footnote
  • link to and display another block with ^annotation

others

stupid thoughts:

  • why can’t i just use regex? e.g., replace all **something** with <b>something</b>?

how does quartz deal with \n, say if i have \n in a paragraph, would it be printed out? or would a new line be create

deal with different level of list:

  • now in format_quote it’s doing line = line.lstrip(), not gonna work
- test
 - test
- test

if there’s a delimiter in url, we’re screwed.
